Linearis3D Software Development Kit

The Linearis3D Software algorithms are available as C++ and .net libraries and provide the following features:

Discuss your measuring task

Source

Fully automatic detection of ellipses with subpixel precision
Detection of coded targets (Linearis3D and ring coded targets)
Orientation of a single camera
Multi-image photogrammetry
High precision calibration of two cameras in a stereo setup
Calibration of a single camera with different mathematical models
- Distortion parameters according to Brown: radial-symmetric parameters A1, A2, A3 (on request also A4), radial-asymmetric and tangential distortion (B1, B2) as well as affinity and shear (C1, C2)
- Extended calibration models for high end applications
- Angle based calibration models for fish-eye lenses
Typical applications are automated measurements using robot-based cameras, frequently in conjunction with scanners.

From € 4950 plus taxes Request your quote now!

Figures

Source — Fig. 1: Example of source code

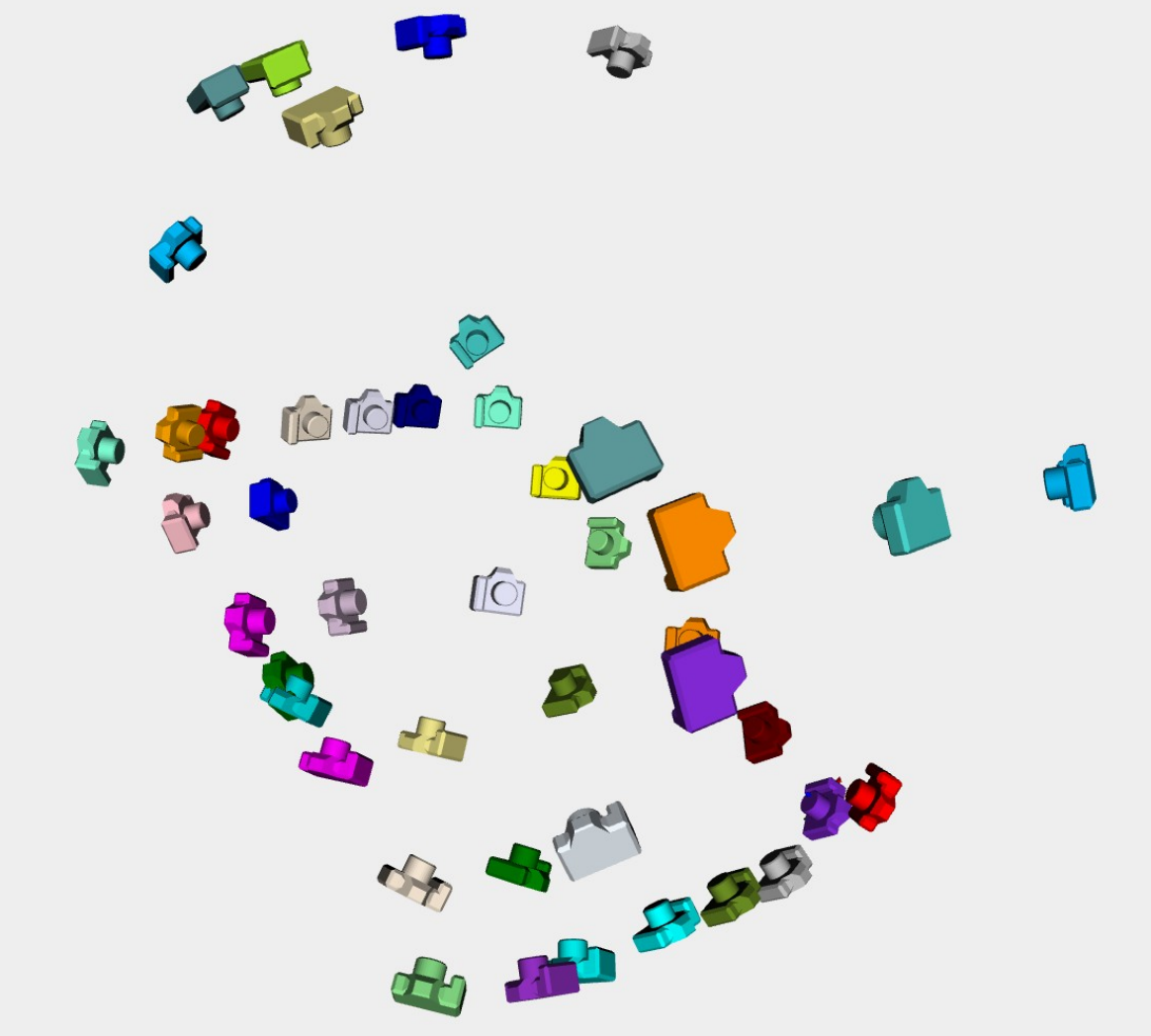

Multi-Kamera-Kalibrierung — Fig. 2: Multi Camera Calibration

Coded Targets — Fig. 3: Coded markers

Subpixel — Fig. 4: Accuracy at sub-pixel level
